Used TX6111D Horizontal Boring & Milling Machine – 110 mm Spindle, DRO, 2017

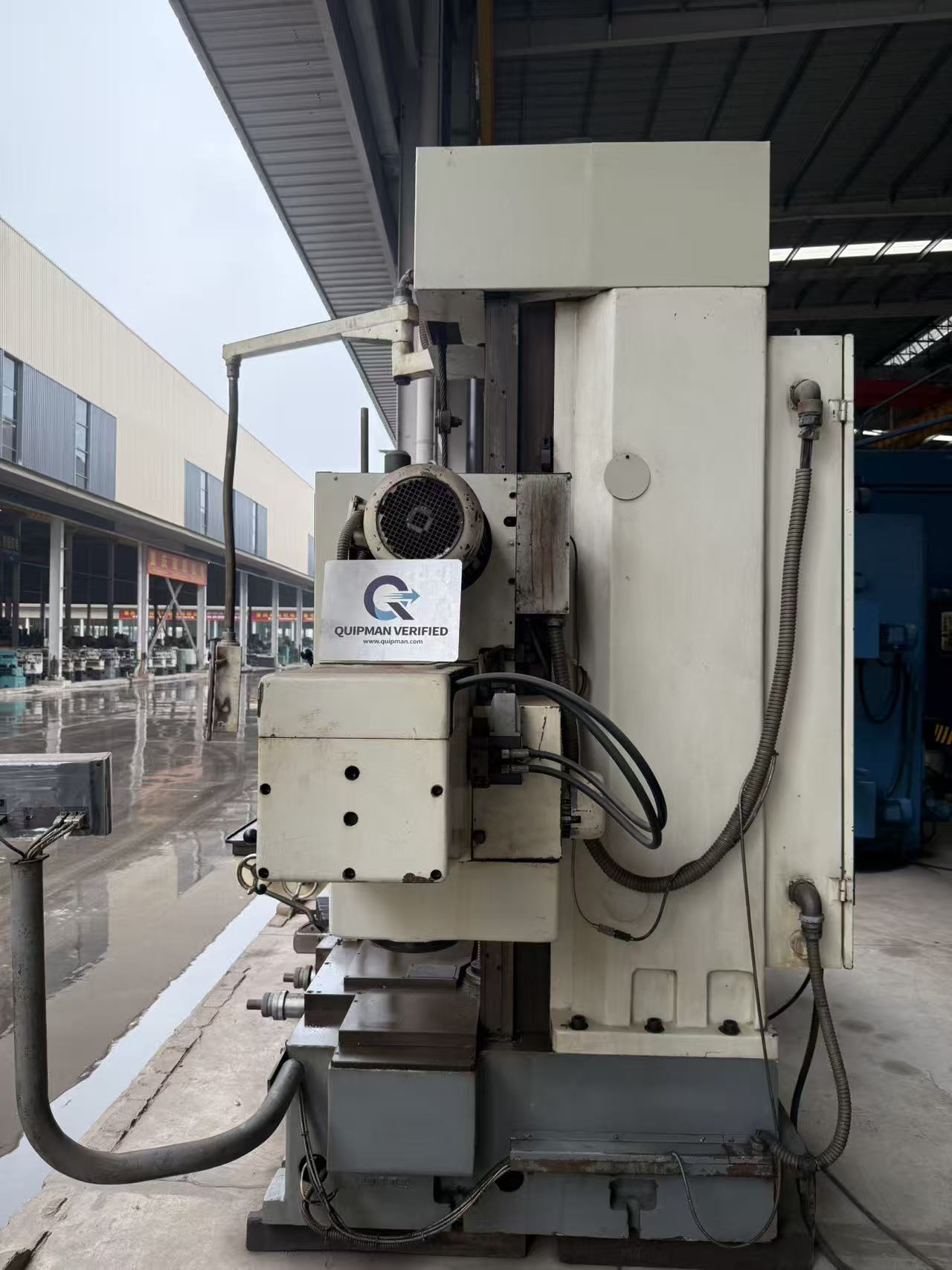

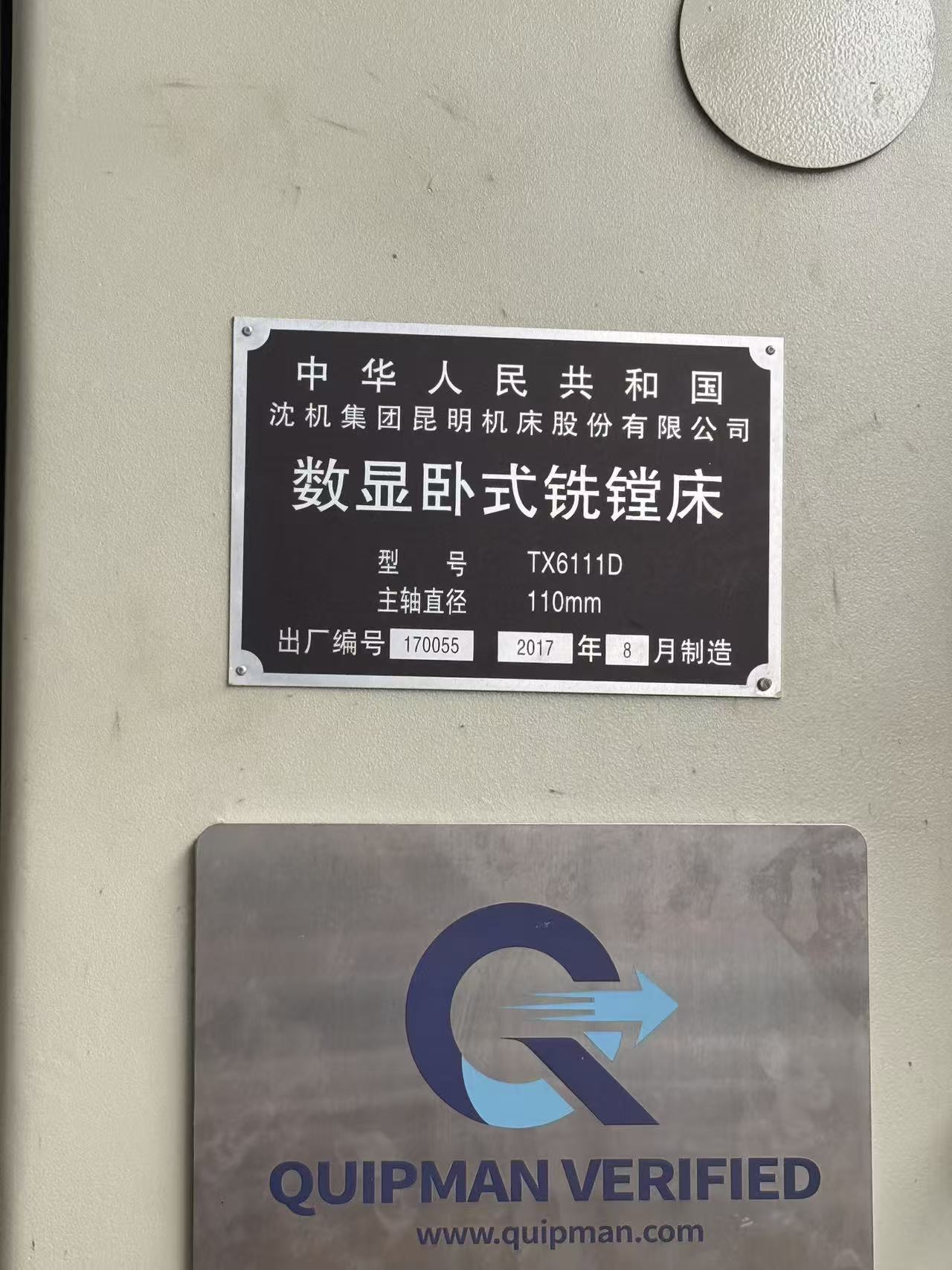

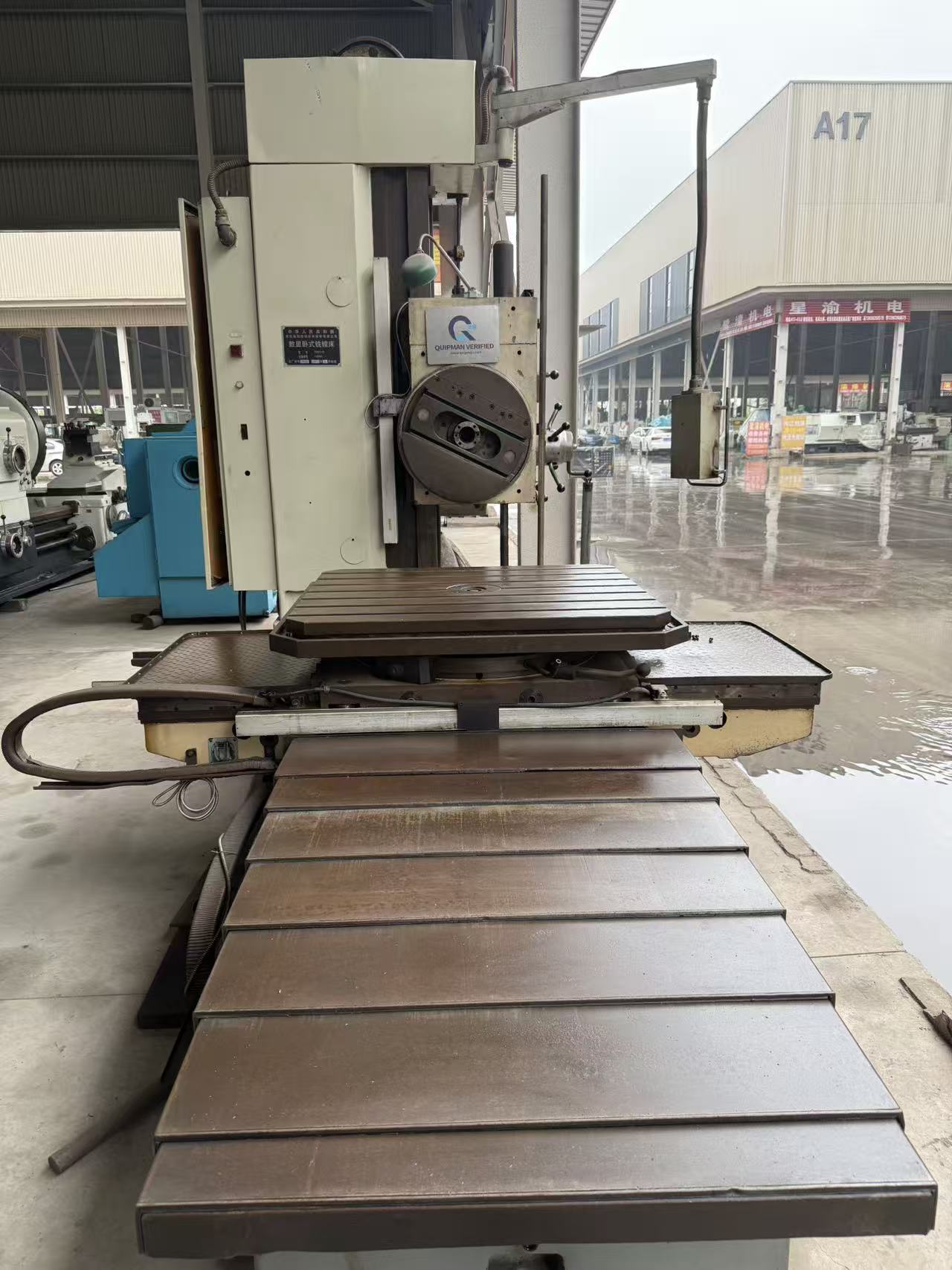

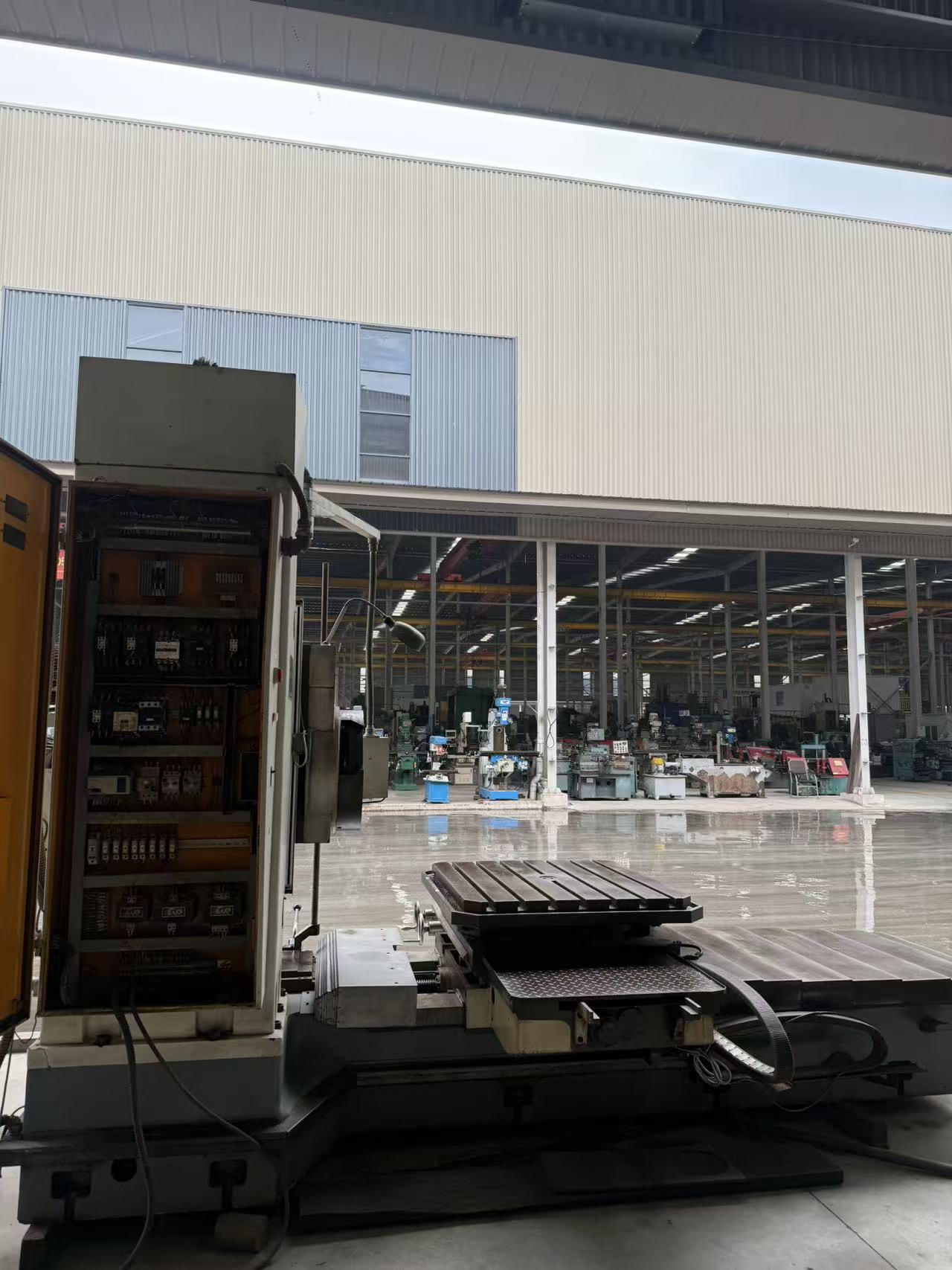

[Overview] Used TX6111D horizontal boring and milling machine, manufactured by Shenji Group Kunming Machine Tool Co., Ltd. in August 2017 (serial no. 170055). The TX6111D is one of the most widely used 110 mm-class horizontal boring and milling machines in China: a floor-type layout with the column mounted on a long bed, a vertically travelling headstock, a 360-degree rotary table, a 540 mm faceplate and a digital readout (DRO), with a table load capacity of 2,500 kg. Suited to large-diameter boring, face and surface milling and thread cutting on gearboxes, frames, valve bodies, pump housings and moulds. Original paint, KD brand plate on top of the column, TX6111D model plate on the headstock front, clean electrical cabinet, complete bed and rotary table, QUIPMAN VERIFIED mark on the machine. [Key Specifications (read from the machine nameplate)] Product: digital-readout horizontal boring and milling machine; model TX6111D; spindle diameter 110 mm; serial no. 170055; manufactured August 2017; manufacturer Shenji Group Kunming Machine Tool Co., Ltd., People's Republic of China. [Standard Factory Configuration (TX6111D, for reference)] Boring spindle diameter 110 mm; spindle taper ISO 50 (7:24); spindle speed 9-1000 rpm (18 steps); faceplate speed 6-221 rpm; main motor 7.5 kW; max. drilling diameter 50 mm, max. boring diameter 300 mm; faceplate diameter 540 mm, max. faceplate boring diameter 600 mm; spindle (W-axis) travel 600 mm; faceplate slide (U-axis) travel 170 mm; table travel X 1000-1100 mm / Z 1400 mm; headstock vertical travel Y 900 mm; table 1000 x 1100 mm (T-slot 22x7), 360-degree rotation, load capacity 2,500 kg; machine weight 12,500 kg; overall dimensions 5,215 x 2,140 x 3,040 mm; PLC control with dynamic braking and DRO. [Delivery & Export] Prices quoted in USD (currently listed at FOB China US$80,000 — please review against our price analysis before finalising); FOB / CIF / DAP and other Incoterms negotiable. At approximately 12.5 t and 5,215 x 2,140 x 3,040 mm, the overall height of 3,040 mm exceeds the usable internal height of both a 40HQ (approx. 2,695 mm) and a 20GP (approx. 2,385 mm) container — the machine cannot be shipped in one piece inside a standard container. Export is normally arranged by one of: (1) 40' open-top (OT) container, loaded by crane and secured inside; (2) part shipment — headstock, faceplate, column, bed, rotary table and electrical cabinet packed separately into 40GP / 40HQ; (3) 40' flat rack or breakbulk vessel. The exact method must be confirmed by the packing contractor against measured dimensions, and dismantling, packing and lifting costs must be quoted separately. We assist with the dismantling plan, wooden-case packing and securing, heavy flatbed inland haulage, customs declaration and export documentation. Buyers should confirm in advance: workshop crane capacity, foundation requirements (this machine needs a solid concrete base) and destination-country import requirements. [Inspection] Video inspection and powered test run available (all spindle speeds, all feed steps, spindle extension and retraction, faceplate rotation and slide feed, headstock elevation, 360-degree table rotation and clamping, DRO readings). Third-party inspection can be arranged (spindle radial and face run-out, parallelism and squareness of the boring spindle axis to the table surface, table flatness, faceplate face run-out, measured travels). The machine carries a QUIPMAN VERIFIED inspection mark. [Note] Specifications are subject to the actual machine and nameplate; the standard configuration figures (some with multiple published variants) are manufacturer-published values, not measurements of this unit. As a conventional (non-CNC) boring and milling machine it has no running-hour meter and no hours are stated. The DRO make and model were not captured and remain to be photographed. Rear column (tailstock), boring bars and tool holders, tooling and manuals are subject to the delivery list.
